Radiant Insert Series

Radiant Insert Series Description

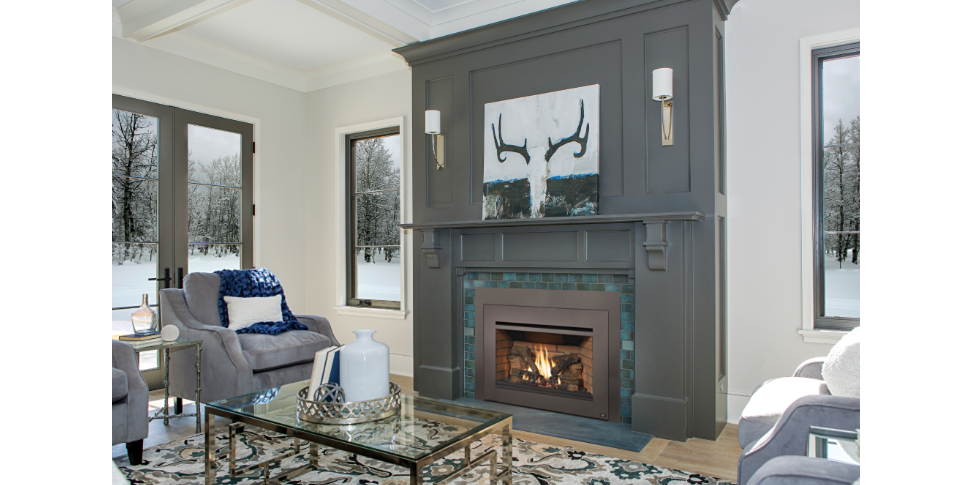

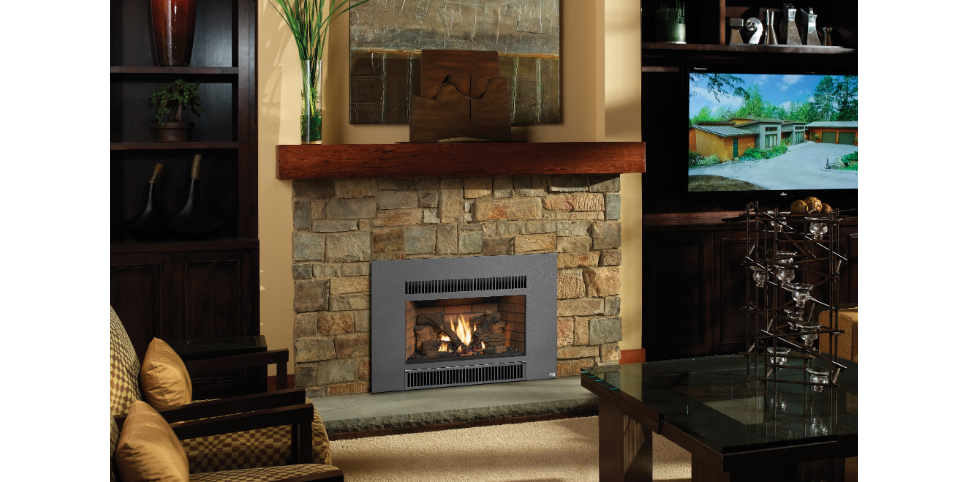

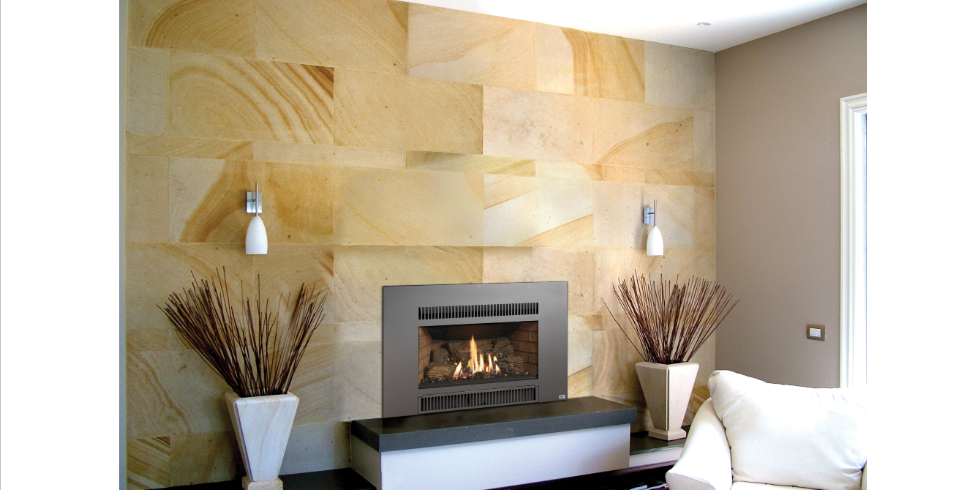

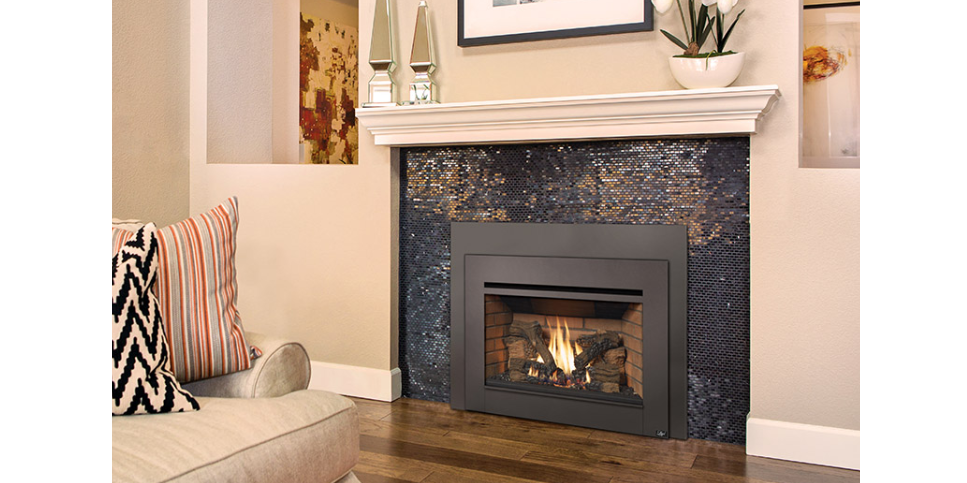

The Radiant PlusGas Insert series is an ideal choice for anyone seeking reliable performance and excellent features at a great price!  These inserts provide beauty and warmth to any living space by providing radiant heat PLUS natural convection, while at the same time featuring a beautiful viewing area and real wood-burning look of its fire display.

Available with three different face styles and the ability to fit custom panels to each unique fireplace, this insert has unlimited design potential.   Comes with an automatic battery backup system to operate during power outages and you can upgrade the fireplace with and optional remote and/or fan.

Small:

Heating Capacity: Up to 950 Square Feet
Maximum BTU/HR Input: 18,000 (NG/LP)
Minimum BTU/HR Input: 9,000 (NG & LP)
Efficiency: Up to 75.15% (NG), 76.71% (LP)
Dimensions: 17-1/8” H, 26-1/2” W (Front), 23-1/2” W (Back), 13-1/8”D
Glass Viewing Area: 21-5/8" W x 10-1/4" H

Minimum Fireplace box dimensions: 24"W x 17½" H x 13 3/8"D

Medium:

Heating Capacity: Up to 1,250 Square Feet
Maximum BTU/HR Input: 18,000 (NG/LP)
Minimum BTU/HR Input: 25,000 (NG & LP)
Efficiency: Up to 74.15% (NG); 75.07% (LP)
Dimensions: 19-1/2” H, 26-1/2” W (Front), 23-1/2” W (Back), 14-7/8”D
Glass Viewing Area: 24-3/16" W x 12-3/4" H

Minimum Fireplace box dimensions: 27"W x 19 3/4" H x 15"D

Large:

Heating Capacity: Up to 1,650 Square Feet
Maximum BTU/HR Input: 33,000 (NG), 31,000 (LP)
Minimum BTU/HR Input: 17,000 (NG) 15,500 (LP)
Efficiency: Up to 79.40% (NG) 81.10% (LP)
Dimensions: 23-1/2” H, 30-1/4” W (Front), 23-1/2” W (Back), 14-7/8”D
Glass Viewing Area: 27-3/4" W x 16-7/8" H

Minimum Fireplace box dimensions: 31"W x 23 3/4" H x 15"D
